YAMAHA

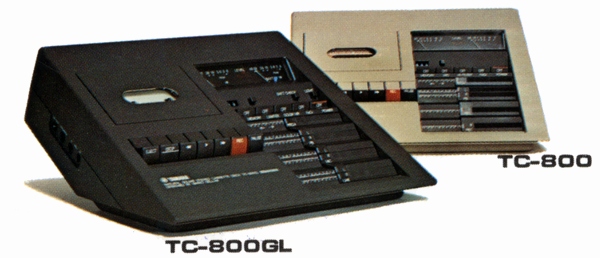

TC-800GL
cassette deck
Cassette deck
SPEC_LINES11
MANUAL_FILES0
IMAGE_REELS6
ARCHIVE_COMPLETION96%
TECHNICAL_DATA
Specifications
Overview
- Deck type
- cassette_deck
- Release year
- 1976
Audio performance
- Frequency response
- 30 Hz ~ 13 kHz (LH) 30 Hz ~ 15 kHz (CrO2, FeCr)
- S/N ratio
- 50 dB or more (DIN, 0 dB)58 dB or more (Dolby on)
- Input sensitivity
- Line : 50mV/50k ΩMic : 0.5mV/10k Ω
Chassis and power
- External dimensions
- Width 312x Height 98 (150) x Depth 312 mm
- Weight
- 5.0 kg (Excluding Dry Batteries)
- Power consumption
- 16W(AC)7W(DC12V)
