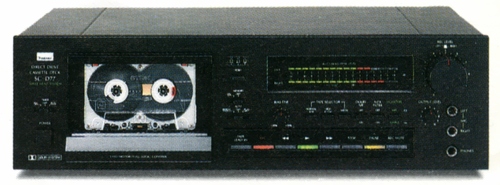

Sansui
SC-D77
cassette deck
Cassette deck
SPEC_LINES7
MANUAL_FILES0
IMAGE_REELS8
ARCHIVE_COMPLETION95%
TECHNICAL_DATA
Specifications
Overview
- Deck type
- cassette_deck
- Release year
- 1981
Audio performance
- Frequency response
- Metal Tape : 20 Hz to 22 kHz 25 Hz to 21 kHz ± 3 dB High Bias Tape (CrO2) : 20 Hz to 18 kHz 25 Hz to 17 kHz ± 3 dB Normal Tape (LH) : 20 Hz to 17 kHz 25 Hz to 16 kHz ± 3 dB
- S/N ratio
- Metal Tape : 60 dB or More Metal Tape, Dolby NRon : 10 dB or more improvement at 5 kHz or more
- Input sensitivity
- Mic : 0.4mV/200 Ω ~ 5k Ω Line : 70mV/47k Ω
Chassis and power
- External dimensions
- Width 430x Height 128x Depth 282 mm
- Weight
- 5.9kg
- Power consumption
- 23W
