COMPONENT_RECORD

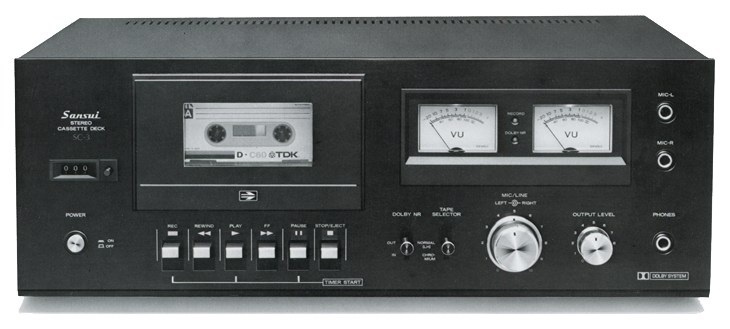

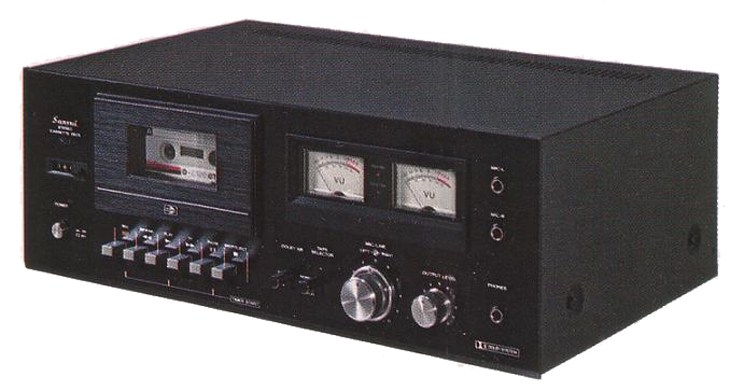

Sansui
SC-3
cassette deck
Cassette deck
SPEC_LINES7
MANUAL_FILES0
IMAGE_REELS9
ARCHIVE_COMPLETION96%
TECHNICAL_DATA
Specifications
Overview
- Deck type
- cassette_deck
- Release year
- 1976
Audio performance
- Frequency response
- Normal Tape (LH) : 30 Hz ~ 13kHz/35Hz ~ 11 kHz ± 3 dB Chrome Tape : 30 Hz ~ 15kHz/35Hz ~ 12 kHz ± 3 dB
- S/N ratio
- Chrome Tape : 50 dB or More Chrome Tape (Dolby) : 60 dB or More (5 kHz or More)
- Input sensitivity
- Mic : 0.5mV/600 Ω ~ 10k ΩLine : 70mV/100k ΩDIN : 4.3mV/8k Ω
Chassis and power
- External dimensions
- Width 440x Height 158x Depth 290 mm
- Weight
- 8kg
- Power consumption
- 12.5 W; maximum: 14.5 W
