COMPONENT_RECORD

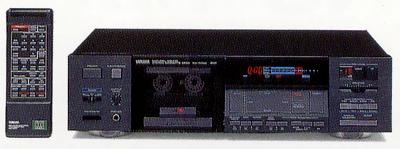

YAMAHA
KX-R700
cassette deck
Cassette deck
SPEC_LINES14
MANUAL_FILES0
IMAGE_REELS2
ARCHIVE_COMPLETION92%
TECHNICAL_DATA
Specifications
Overview
- Deck type
- cassette_deck
- Release year
- 1988
Audio performance
- Frequency response
- 20 Hz ~ 17 kHz ± 3 dB (normal) 20 Hz ~ 19 kHz ± 3 dB (Chrome) 20 Hz ~ 20 kHz ± 3 dB (metal)
- S/N ratio
- 57dB(NR off) 65dB(Dolby B on) 73dB(Dolby C on) 90dB(dbx on)
- THD
- Not more than 0.8%
Chassis and power
- External dimensions
- Width 435x Height 118x Depth 297 mm
- Weight
- 5.8kg
- Power consumption
- 18 W; power off: 6 W
