COMPONENT_RECORD

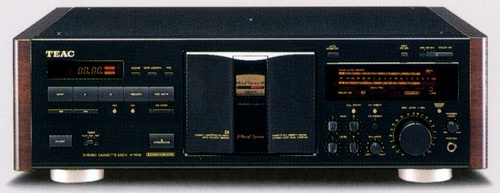

Teac/Esoteric/Tascam
V-7010
cassette deck
Cassette deck
SPEC_LINES7
MANUAL_FILES0
IMAGE_REELS8
ARCHIVE_COMPLETION95%
TECHNICAL_DATA
Specifications
Overview
- Deck type
- cassette_deck
- Release year
- 1992
Audio performance
- Frequency response
- 15 Hz ~ 21 kHz ± 3 dB (Metal Tape) 15 Hz ~ 20 kHz ± 3 dB (Chrome Tape) 15 Hz ~ 18 kHz ± 3 dB (Normal Tape)
- S/N ratio
- 58 dB (NR off, normal recording level, EIAJ)70 dB (Dolby B NRon, CCIR/ARM)80 dB (Dolby C NRon, CCIR/ARM)
- Input sensitivity
- Line : 97mV/50k ΩCD Direct : 115mV/50k Ω
Chassis and power
- External dimensions
- Width 472x Height 149x Depth 355 mm
- Weight
- 9.8kg
- Power consumption
- 20W
