COMPONENT_RECORD
Victor/JVC

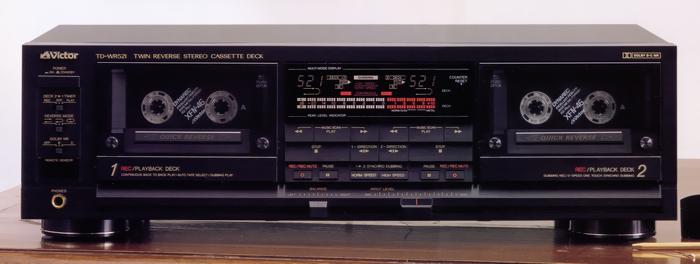

TD-WR521
cassette deck
Cassette deck
SPEC_LINES14
MANUAL_FILES0
IMAGE_REELS2
ARCHIVE_COMPLETION92%
TECHNICAL_DATA
Specifications
Overview
- Deck type
- cassette_deck
- Release year
- 1988
Audio performance
- Frequency response
- Metal : 30 Hz ~ 17 kHz ± 3 dB Chrome : 30 Hz ~ 16 kHz ± 3 dB Normal : 30 Hz to 16 kHz ± 3 dB
- S/N ratio
- 54 dB (metal tape, EIAJ)58 dB (WTD, 1 kHz, 3% 3rd harmonic distortion factor, metal tape)Dolby B NRon : 5 dB at 1 kHz, 10 dB at 5 kHz or higherDolby C NRon : up to 15 db at 500 hz, up to 20 db at 1 khzMOL improvement effect : 4 db improvement at 10 khz
- THD
- 0.5% (EIAJ, 1 kHz, 3rd harmonic distortion factor, metal tape)
Chassis and power
- External dimensions
- Width 435x Height 133x Depth 280 mm
- Weight
- Approx. 4.7 kg
- Power consumption
- 25W (Electrical Appliance and Material Control Law Standard)1.2W (standby)
