COMPONENT_RECORD

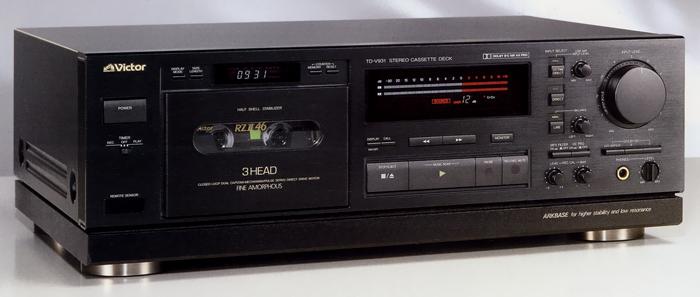

Victor/JVC
TD-V931
cassette deck
Cassette deck
SPEC_LINES15
MANUAL_FILES0
IMAGE_REELS7
ARCHIVE_COMPLETION96%
TECHNICAL_DATA
Specifications
Overview
- Deck type
- cassette_deck
- Release year
- 1989
Audio performance
- Frequency response
- Metal : 15 Hz ~ 21 kHz ± 3 dB Chrome : 15 Hz ~ 19 kHz ± 3 dB Normal : 15 Hz to 19 kHz ± 3 dB
- S/N ratio
- 57 dB (Metal Tape, EIAJ)
- THD
- 0.5% (EIAJ, 1 kHz, 3rd harmonic distortion factor, metal tape)
Chassis and power
- External dimensions
- Width 435x Height 152x Depth 333 mm
- Weight
- Approx. 13 kg
- Power consumption
- 37 W
- Power supply
- 100 VAC, 50Hz/60Hz
