COMPONENT_RECORD

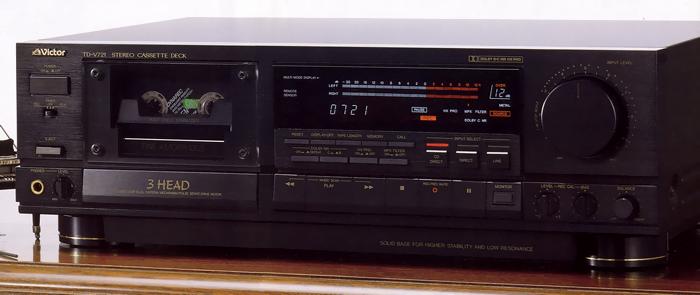

Victor/JVC
TD-V721
cassette deck
Cassette deck
SPEC_LINES14
MANUAL_FILES0
IMAGE_REELS4
ARCHIVE_COMPLETION96%
TECHNICAL_DATA
Specifications
Overview
- Deck type
- cassette_deck
- Release year
- 1988
Audio performance
- Frequency response
- Metal : 15 Hz ~ 21 kHz ± 3 dB Chrome : 15 Hz ~ 19 kHz ± 3 dB Normal : 15 Hz to 19 kHz ± 3 dB
- S/N ratio
- 57 dB (Metal Tape, EIAJ)61 dB (A. WTD, 1 kHz, 3% 3rd harmonic distortion rate, metal tape)Dolby B NRon : 5 dB at 1 kHz, 10 dB at 5 kHz or higherDolby C NRon : up to 15 db at 500 hz, up to 20 db at 1 khzMOL improvement effect : 4 db improvement at 10 khz
- THD
- 0.5% (EIAJ, 1 kHz, 3rd harmonic distortion factor, metal tape)
Chassis and power
- External dimensions
- Width 435x Height 140x Depth 336 mm
- Weight
- Approx. 10.3 kg
- Power consumption
- 20W (Electrical Appliance and Material Control Law Standard)
