COMPONENT_RECORD
Victor/JVC
TD-V631
cassette deck

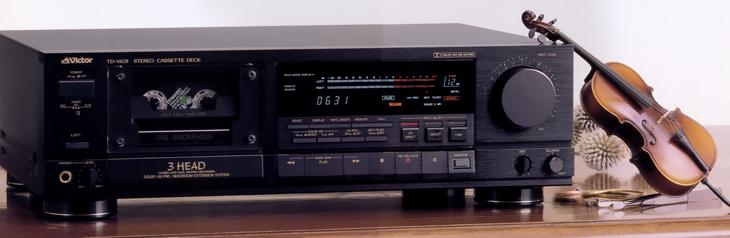

Stereo cassette deck
SPEC_LINES14
MANUAL_FILES0
IMAGE_REELS6
ARCHIVE_COMPLETION96%
TECHNICAL_DATA
Specifications
Overview
- Deck type
- cassette_deck
- Release year
- 1988
Audio performance
- Frequency response
- Metal : 15 Hz ~ 21 kHz ± 3 dB Chrome : 15 Hz ~ 19 kHz ± 3 dB Normal : 15 Hz to 19 kHz ± 3 dB
- S/N ratio
- 56 dB (metal, EIAJ)59 dB (WTD, 1 kHz, 3% 3rd harmonic distortion factor, metal)Dolby B NR on : 5 dB at 1 kHz, 10 dB at 5 kHz or higherDolby C NR on : Approx. 15 db at 500 hz, up to 20 db at 1 khz to 10 khzMOL improvement effect 4 dB at 10 kHz
- THD
- 0.5% (1 kHz, 3% 3rd harmonic distortion factor, metal, EIAJ)
Chassis and power
- External dimensions
- Width 435x Height 132x Depth 336 mm
- Weight
- Approx. 7.6 kg
- Power consumption
- 17W (Electrical Appliance and Material Control Law Standard)
