COMPONENT_RECORD

ARCHIVED

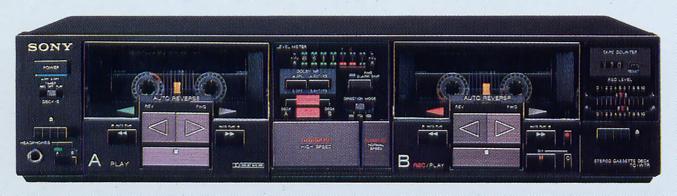

Sony

TC-W7R

cassette deck

Cassette deck

SPEC_LINES6
MANUAL_FILES0
IMAGE_REELS1
ARCHIVE_COMPLETION64%
Specifications

TECHNICAL_DATA

Specifications

Overview

Deck type
cassette_deck
Release year
1986

Audio performance

Frequency response
Dolby NR off: Type IV 20 Hz to 17 kHz; Type II 20 Hz to 16 kHz; Type I 20 Hz to 15 kHz
S/N ratio
NAB at peak level: Type IV 58 dB off / 65 dB Dolby B / 71 dB Dolby C; Type II 57 / 64 / 70 dB; Type I 54 / 61 / 67 dB

Chassis and power

External dimensions
Width 430x Height 105x Depth 275 mm
Weight
5.5kg
Power consumption
24 W
