Technics / Panasonic

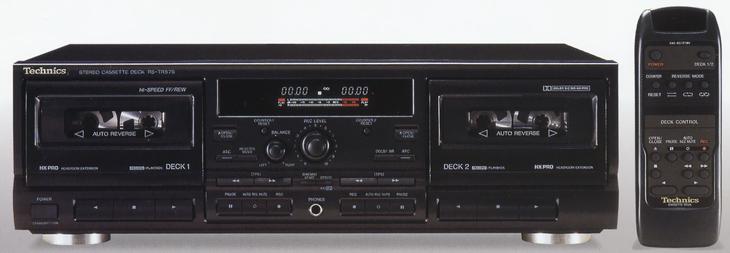

RS-TR575
double cassette deck
Double cassette deck
SPEC_LINES6
MANUAL_FILES0
IMAGE_REELS1
ARCHIVE_COMPLETION64%
TECHNICAL_DATA
Specifications
Overview
- Deck type
- double_cassette_deck
- Release year
- 1994
Audio performance
- Frequency response
- Normal : 40 Hz to 15 kHz ± 3 dB CrO2 : 40 Hz to 15 kHz ± 3 dB Metal : 40 Hz ~ 16 kHz ± 3 dB
- S/N ratio
- NR off : 56 dB (Chrome Tape, WTD, 1 kHz, 3% 3rd order distortion factor)Dolby B NRon : 66 dB (Chrome Tape, WTD, 1 kHz, 3% 3rd order distortion)Dolby C NRon : 74 dB (Chrome Tape, WTD, 1 kHz, 3% third order distortion)
Chassis and power
- External dimensions
- Width 430x Height 136x Depth 285 mm
- Weight
- 4.4kg
- Power consumption
- 22W
