COMPONENT_RECORD
Teac/Esoteric/Tascam

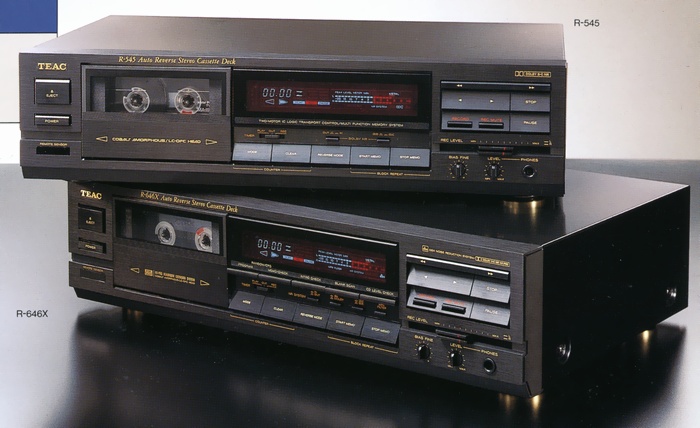

R-646X
cassette deck
Cassette deck
SPEC_LINES13
MANUAL_FILES0
IMAGE_REELS7
ARCHIVE_COMPLETION96%
TECHNICAL_DATA
Specifications
Overview
- Deck type
- cassette_deck
- Release year
- 1989
Audio performance
- Frequency response
- Metal : 20 Hz to 19 kHz Chrome : 20 Hz to 18 kHz Normal : 20 Hz to 17 kHz
- S/N ratio
- 59 dB (NR off, 3% THD level, WTD)69 dB (Dolby B NRon, 5 kHz or higher)74 dB (Dolby C NRon, 1 kHz or higher)90 dB (dbx NRon, 1 kHz)
Chassis and power
- External dimensions
- Width 435x Height 109x Depth 295 mm
- Weight
- 5.0kg
- Power consumption
- 17W
