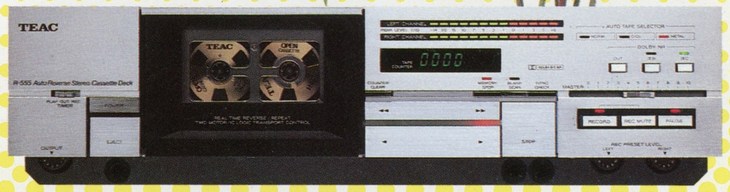

Teac/Esoteric/Tascam
R-555/R-555BL
cassette deck
Cassette deck
SPEC_LINES14
MANUAL_FILES0
IMAGE_REELS4
ARCHIVE_COMPLETION96%
TECHNICAL_DATA
Specifications
Overview
- Deck type
- cassette_deck
- Release year
- 1984
Audio performance
- Frequency response
- 30 Hz ~ 20 kHz (30 Hz ~ 19 kHz ± 3 dB) (Metal Tape)30 Hz ~ 20 kHz (30 Hz ~ 18 kHz ± 3 dB) (Chrome Tape)30 Hz ~ 19 kHz (30 Hz ~ 17 kHz ± 3 dB) (Normal Tape)
- S/N ratio
- 59 dB (NR off, 3% THD level, WTD)69 dB (Dolby B on, 5 kHz or higher)79 dB (Dolby C on, 1 kHz or higher)
- Input sensitivity
- Line : 50mV/50k ΩMic : 0.5mV/200 Ω or more
Chassis and power
- External dimensions
- Width 432x Height 112x Depth 284 mm
- Weight
- 4.4kg
- Power consumption
- 17W
