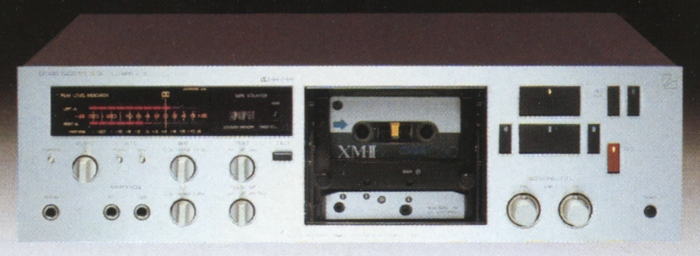

Luxman
K-10
cassette deck
Cassette deck
SPEC_LINES12
MANUAL_FILES0
IMAGE_REELS3
ARCHIVE_COMPLETION90%
TECHNICAL_DATA
Specifications
Overview
- Deck type
- cassette_deck
- Release year
- 1979
Audio performance
- Frequency response
- CrO2 : 20 Hz to 19 kHz (30 Hz to 18 kHz ± 3 dB)Normal : 20 Hz to 17 kHz (30 Hz to 16 kHz ± 3 dB)Metal : 20 Hz to 20 kHz (30 Hz to 20 kHz ± 3 dB)
- S/N ratio
- CrO2: normal: metal: 63 dB or more (Dolby on, CCIR correction) 54 dB or More (Dolby off, JIS-A correction) 60 dB or More (Dolby on, CCIR correction) 50 dB or More (Dolby off, JIS-A Correction) 65 dB or More (Dolby on, CCIR correction) 56 dB or More (Dolby off, JIS-A Correction)
- Input sensitivity
- Line:100mVMic : 0.25 mV (Optimum Z : 600 Ω ~ 10k Ω)
Chassis and power
- External dimensions
- Width 438x Height 126x Depth 370 mm
- Weight
- 10kg
- Power consumption
- 35W
