COMPONENT_RECORD
Luxman

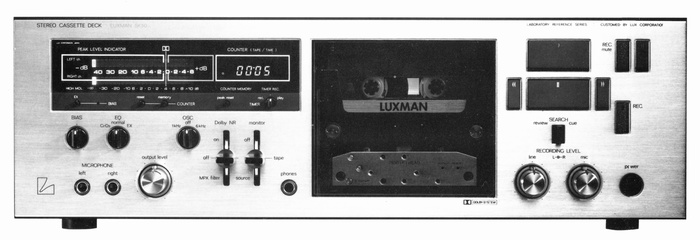

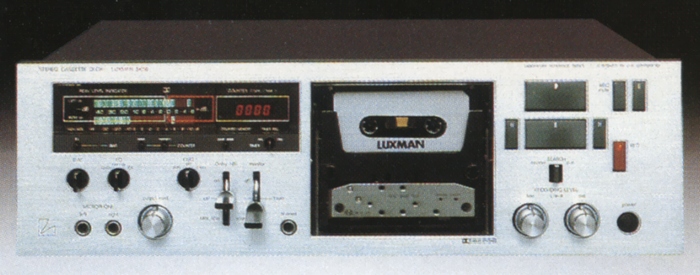

5K50
cassette deck
Cassette deck
SPEC_LINES13
MANUAL_FILES0
IMAGE_REELS9
ARCHIVE_COMPLETION96%
TECHNICAL_DATA
Specifications
Overview
- Deck type
- cassette_deck
- Release year
- 1979
Audio performance
- Frequency response
- CrO2 : 20 Hz to 20 kHz (30 Hz to 18 kHz ± 3 dB)Normal : 20 Hz to 18 kHz (30 Hz to 16 kHz ± 3 dB)
- S/N ratio
- CrO2: normal: 67 dB or More (Dolby on, CCIR corrected) 58 dB or More (Dolby off, JIS-A Correction) 65 dB or More (Dolby on, CCIR correction) 55 dB or More (Dolby off, JIS-A Correction)
- Input sensitivity
- Line:100mVMic : 0.25 mV (Optimum Z ; 600 Ω ~ 10k Ω)
Chassis and power
- External dimensions
- Width 442x Height 146x Depth 389 mm
- Weight
- 12.5kg
- Power consumption
- 75W
