COMPONENT_RECORD
Teac/Esoteric/Tascam

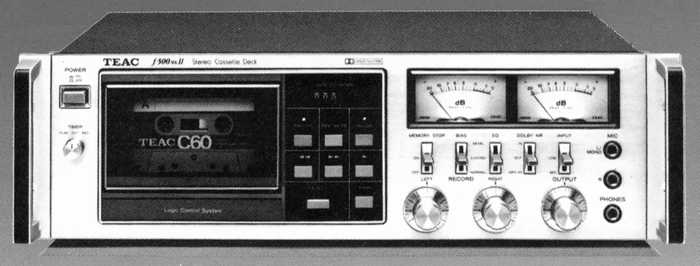

f-500mkII
cassette deck
Cassette deck
SPEC_LINES13
MANUAL_FILES0
IMAGE_REELS4
ARCHIVE_COMPLETION96%
TECHNICAL_DATA
Specifications
Overview
- Deck type
- cassette_deck
- Release year
- 1979
Audio performance
- Frequency response
- Metal Tape : 30 Hz ~ 18 kHz (30 Hz ~ 17 kHz ± 3 dB) Cobalt Tape : 30 Hz ~ 18 kHz (30 Hz ~ 17 kHz ± 3 dB) Normal Tape : 30 Hz ~ 15 kHz (30 Hz ~ 13 kHz ± 3 dB)
- S/N ratio
- 56 dB (3% distortion level, acoustic compensation) Dolby rerecording improvement : 5 dB (1 kHz), 10 dB (5 kHz or more)
- Input sensitivity
- Mic : 0.25mV/-72dB/200 Ω or MoreLine : 60mV/50k Ω
Chassis and power
- External dimensions
- Width 440x Height 147x Depth 345 mm
- Weight
- 9kg
- Power consumption
- 23W
