COMPONENT_RECORD

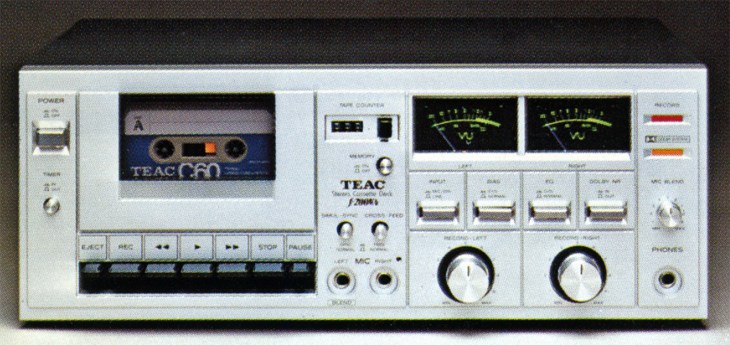

Teac/Esoteric/Tascam
f-200VA
cassette deck
Cassette deck
SPEC_LINES12
MANUAL_FILES0
IMAGE_REELS3
ARCHIVE_COMPLETION90%
TECHNICAL_DATA
Specifications
Overview
- Deck type
- cassette_deck
- Release year
- 1978
Audio performance
- Frequency response
- 30 Hz ~ 16 kHz (Chrome Tape)
- S/N ratio
- 55 dB (3% distortion level, acoustic compensation) Dolby rerecording improvement : 5 dB (1 kHz), 10 dB (5 kHz or more)
- Input sensitivity
- Microphone : 0.25mV/-72dB/600 Ω or more compatibleLine : 60mV/50k Ω
Chassis and power
- External dimensions
- Width 414x Height 154x Depth 295 mm
- Weight
- 7.0kg
- Power consumption
- 13W
