COMPONENT_RECORD
PIONEER/EXCLUSIVE/TAD

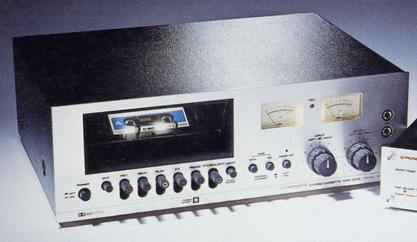

CT-5/CT-5D
cassette deck
Stereo cassette deck
SPEC_LINES10
MANUAL_FILES0
IMAGE_REELS2
ARCHIVE_COMPLETION80%
TECHNICAL_DATA
Specifications
Overview
- Deck type
- cassette_deck
- Release year
- 1975
Audio performance
- Frequency response
- General, LH Tape : 30 Hz ~ 13 kHz, 40 Hz ~ 11 kHz ± 3 dBChrome Tape : 30 Hz ~ 16 kHz, 40 Hz ~ 12 kHz ± 3 dB
- S/N ratio
- Generic, LH tape Dolby off:48dB Dolby on : 58 dB or more (5 kHz or more)
- Input sensitivity
- Microphone : 0.2mV/90mV/20k Ω Line : 60mV/9V/470k Ω DIN : 1.6mV/2.7V/10k Ω
Chassis and power
- External dimensions
- CT-5 : Width 410x Height 138x Depth 330 mmCT-5D : 442 mm wide x 138 mm high x 330 mm deep
- Weight
- CT-5:8.5kgCT-5D:9.0kg
- Power consumption
- 13W max.
