COMPONENT_RECORD
NAKAMICHI

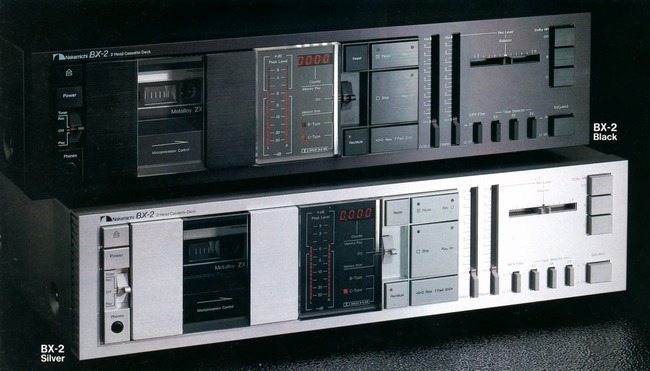

BX-2
cassette deck
Stereo cassette deck
SPEC_LINES7
MANUAL_FILES0
IMAGE_REELS8
ARCHIVE_COMPLETION95%
TECHNICAL_DATA
Specifications
Overview
- Deck type
- cassette_deck
- Release year
- 1982
- Production years
- 1982-1983
Audio performance
- Frequency response
- 20 Hz to 20 kHz (recording level -20dB)
- S/N ratio
- Dolby B on : 62 dB or more (400 Hz, THD3%, WTD RMS) Dolby C on : 68 dB or higher (400 Hz, THD3%, WTD RMS)
- Input sensitivity
- 50mV/30k Ω
Chassis and power
- External dimensions
- Width 430x Height 110x Depth 250 mm
- Weight
- Approx. 5.5 kg
- Power consumption
- Up to 23W
