COMPONENT_RECORD

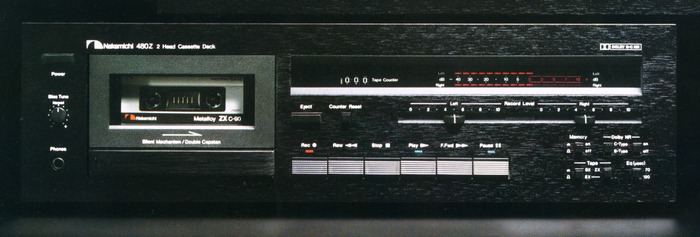

NAKAMICHI
480Z
cassette deck
Cassette deck
SPEC_LINES14
MANUAL_FILES0
IMAGE_REELS5
ARCHIVE_COMPLETION96%
TECHNICAL_DATA
Specifications
Overview
- Deck type
- cassette_deck
- Release year
- 1981
Audio performance
- Frequency response
- 20 Hz to 20 kHz
- S/N ratio

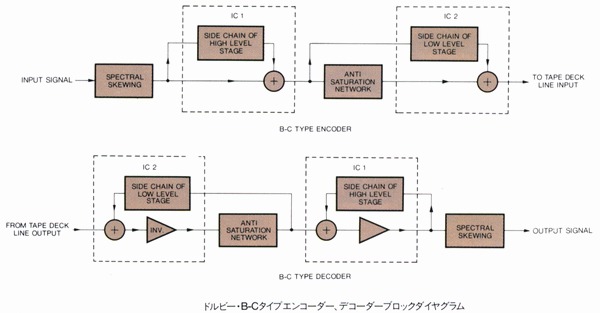

- Dolby B NR in : 62 dB or more (400 Hz, 3% THD, IHF-A wtd rms) Dolby C NR in : 68 dB or higher (400 Hz, 3% THD, IHF-A wtd rms)
- THD
- 1.0% or Less (ZX Tape) 1.2% or Less (SX, EX II tape)
Chassis and power
- External dimensions
- Width 450x Height 135x Depth 289 mm
- Weight
- Approx. 6.4 kg
- Power consumption
- 30W max.
