COMPONENT_RECORD
NAKAMICHI
700ZXE
cassette deck
Cassette deck
SPEC_LINES7
MANUAL_FILES0
IMAGE_REELS11
ARCHIVE_COMPLETION96%
TECHNICAL_DATA
Specifications
Overview
- Deck type
- cassette_deck
- Release year
- 1980
Audio performance
- Frequency response
- 20 Hz to 20 kHz ± 2 dB (18 Hz to 23 kHz ± 3 dB) (Nakamichi EX, EX II, SX, ZX tape, recording level -20dB)
- S/N ratio

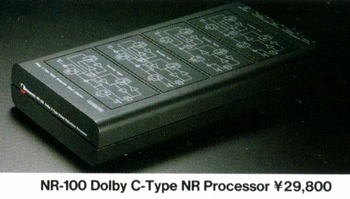

- Dolby B NR in : 66 dB or more (400 Hz) Dolby C NR in : 72 dB or more (400 Hz, using NR-100)
- THD
- 0.8% or Less (ZX Tape) 1.0% or Less (SX, EX II tape)
Chassis and power
- External dimensions
- Width 500x Height 262x Depth 250 mm
- Weight
- Approximately 14 kg
- Power consumption
- 50W max.
