COMPONENT_RECORD

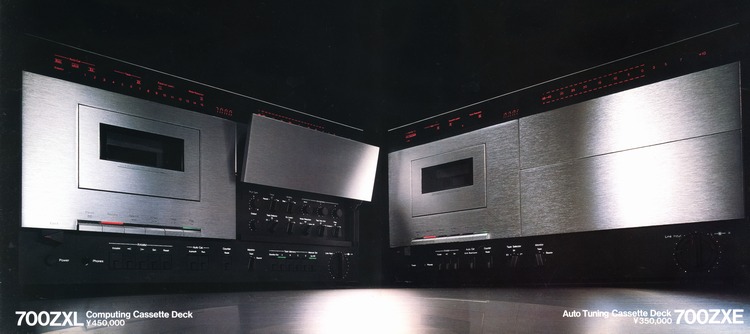

NAKAMICHI
700ZXL
cassette deck
Cassette deck
SPEC_LINES14
MANUAL_FILES0
IMAGE_REELS14
ARCHIVE_COMPLETION96%
TECHNICAL_DATA
Specifications
Overview
- Deck type
- cassette_deck
- Release year
- 1980
- Production years
- 1980-1982
- Country of origin
- Japan
Audio performance
- Frequency response
- 20 Hz to 20 kHz ± 1.5 dB (18 Hz to 24 kHz ± 3 dB) (Nakamichi EX, EX II, SX, ZX tape, recording level -20dB)
- S/N ratio

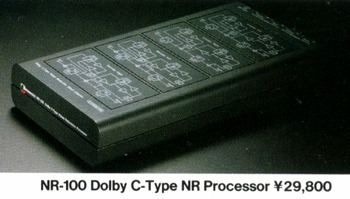

- Dolby B NR in : 66 dB or more (400 Hz, 3% THD) Dolby C NR in : 72 dB or more (400 Hz, 3% THD, NR-100 used)
- THD
- 0.8% or Less (ZX Tape) 1.0% or Less (SX, EX II tape)
Chassis and power
- External dimensions
- Width 500x Height 262x Depth 250 mm
- Weight
- Approximately 14 kg
- Power consumption
- 50W max.
