COMPONENT_RECORD
NAKAMICHI
482Z
cassette deck
Cassette deck
SPEC_LINES14
MANUAL_FILES0
IMAGE_REELS6
ARCHIVE_COMPLETION96%
TECHNICAL_DATA
Specifications
Overview
- Deck type
- cassette_deck
- Release year
- 1981
- Production years
- 1981-1982
Audio performance
- Frequency response
- 20 Hz to 20 kHz
- S/N ratio

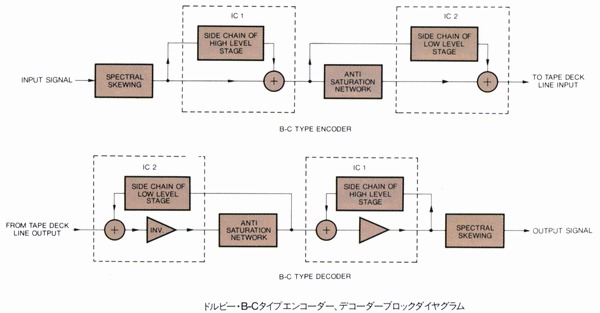

- Dolby B NR in : 63 dB or more (400 Hz, 3% THD, IHF-A wtd rms) Dolby C NR in : 69 dB or more (400 Hz, 3% THD, IHF-A wtd rms)
- THD
- 0.9% or Less (ZX Tape) 1.0% or Less (SX, EX II tape)
Chassis and power
- External dimensions
- Width 450x Height 135x Depth 289 mm
- Weight
- Approx. 6.4 kg
- Power consumption
- 30W max.
