COMPONENT_RECORD

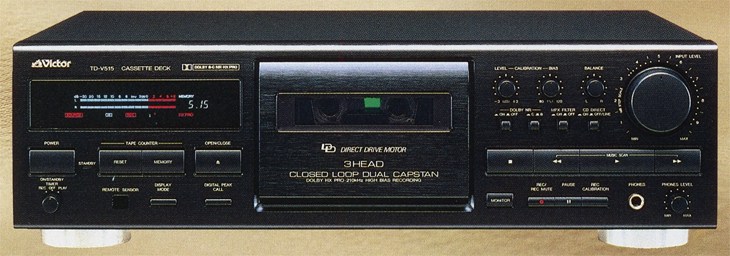

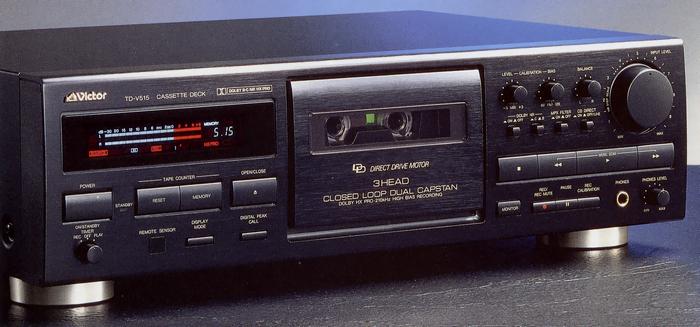

Victor/JVC
TD-V515
cassette deck
Cassette deck
SPEC_LINES15
MANUAL_FILES0
IMAGE_REELS5
ARCHIVE_COMPLETION96%
TECHNICAL_DATA
规格
概览
- Deck type
- cassette_deck
- Release year
- 1993
音频性能
- Frequency response
- Metal : 15 Hz ~ 20 kHz ± 3 dB
- S/N ratio
- 56 dB (NR off, metal, WTD, metal tape)
- THD
- 0.7% (315 Hz, 0 VU 3rd harmonic distortion factor, metal)
机身与电源
- External dimensions
- Width 435x Height 133x Depth 332 mm (including feet and knobs)
- Weight
- Approx. 5.2 kg
- Power consumption
- 100 VAC, 50Hz/60Hz
- Power supply
- 100 VAC, 50Hz/60Hz
