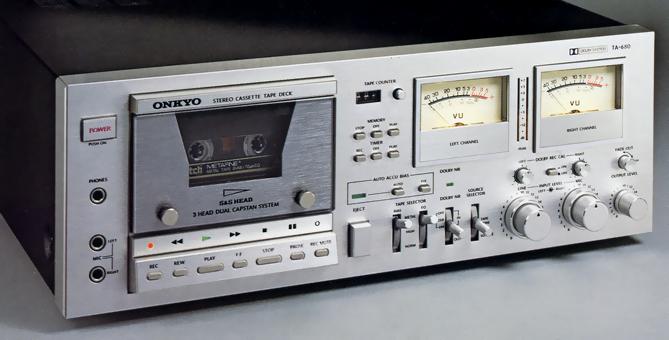

ONKYO
TA-680
cassette deck
Stereo cassette deck
SPEC_LINES15
MANUAL_FILES0
IMAGE_REELS7
ARCHIVE_COMPLETION96%
TECHNICAL_DATA
Specifications
Overview
- Deck type
- cassette_deck
- Release year
- 1979
Audio performance
- Frequency response
- 20 Hz ~ 20 kHz (Metal Tape)20 Hz ~ 18 kHz (High Position Tape)20 Hz ~ 16 kHz (Normal Tape)
- S/N ratio
- 62 dB (Metal Tape)
- Input sensitivity
- Microphone : 0.3mv/600 Ω Line : 50 mV
- Impedance
- Microphone : 5k Ω (Compatible impedance 200 Ω ~ 50k Ω)Line : 100k Ω
Chassis and power
- External dimensions
- Width 438x Height 160x Depth 365 mm
- Weight
- 10.2kg
- Power consumption
- 45W
