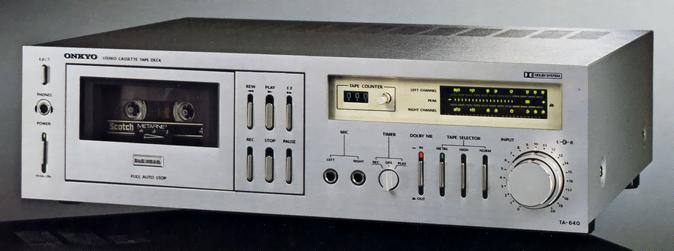

ONKYO
TA-640
cassette deck
Stereo cassette deck
SPEC_LINES15
MANUAL_FILES0
IMAGE_REELS4
ARCHIVE_COMPLETION96%
TECHNICAL_DATA
Specifications
Overview
- Deck type
- cassette_deck
- Release year
- 1979
Audio performance
- Frequency response
- 20 Hz ~ 19 kHz (Metal Tape)20 Hz ~ 17 kHz (High Position Tape)20 Hz ~ 15 kHz (Normal Tape)
- S/N ratio
- 58 dB or More (Metal Tape)Dolby in : 5 dB at 1 kHz, 10 dB or more at 5 kHz
- Input sensitivity
- Microphone : 0.3mv/600 Ω Line : 50 mV
- Impedance
- Microphone : 5k Ω (Compatible impedance 200 Ω ~ 50k Ω)Line : 50k Ω
Chassis and power
- External dimensions
- Width 418x Height 120x Depth 330 mm
- Weight
- 6.4kg
- Power consumption
- 25W
