COMPONENT_RECORD

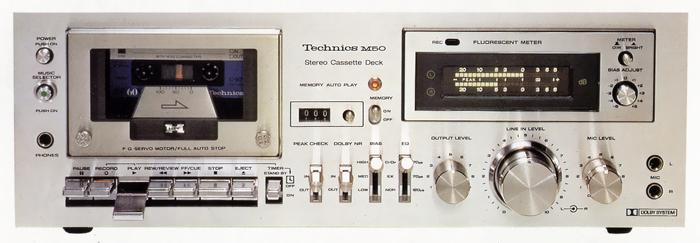

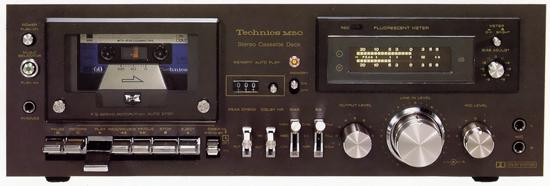

Technics / Panasonic
RS-M50
cassette deck
Stereo cassette deck
SPEC_LINES14
MANUAL_FILES0
IMAGE_REELS8
ARCHIVE_COMPLETION96%
TECHNICAL_DATA
Specifications
Overview
- Deck type
- cassette_deck
- Release year
- 1978
Audio performance
- Frequency response
- Normal : 20 Hz to 15 kHzCrO2 : 20 Hz to 17 kHz
- S/N ratio
- 57 dB (XA tape, peak level)Dolby NR in : 10 db improvement (5 khz)
- Input sensitivity

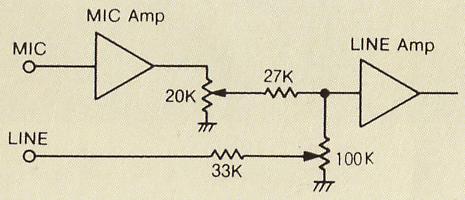

- Mic : 0.25 mV (-72dB) / 400 Ω ~ 20k ΩLine in:60mV(-24dB)
Chassis and power
- External dimensions
- Width 430x Height 149x Depth 267 mm
- Weight
- Approx. 7.3 kg
- Power consumption
- 11W
