COMPONENT_RECORD

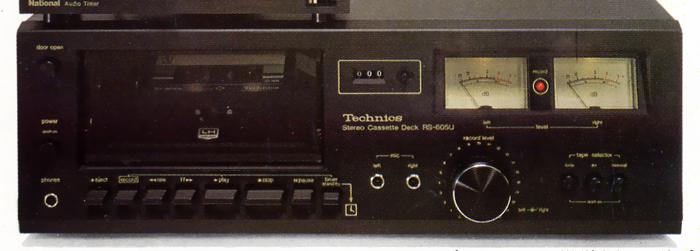

Technics / Panasonic
RS-605U
cassette deck
Stereo cassette deck
SPEC_LINES10
MANUAL_FILES0
IMAGE_REELS6
ARCHIVE_COMPLETION96%
TECHNICAL_DATA
Specifications
Overview
- Deck type
- cassette_deck
- Release year
- 1976
Audio performance
- Frequency response
- Normal : 30 Hz to 13 kHzCrO2/ex : 30 Hz to 14 kHz
- S/N ratio
- 50dB
- Input sensitivity
- Mic : 0.25 mV (-72dB) / 400 Ω ~ 20k ΩLine in : 60 mv (-24dB) / 47k Ω
Chassis and power
- External dimensions
- Width 410x Height 136x Depth 244 mm
- Weight
- Approx. 4.0 kg
- Power consumption
- Approx. 9W
