COMPONENT_RECORD
Technics / Panasonic

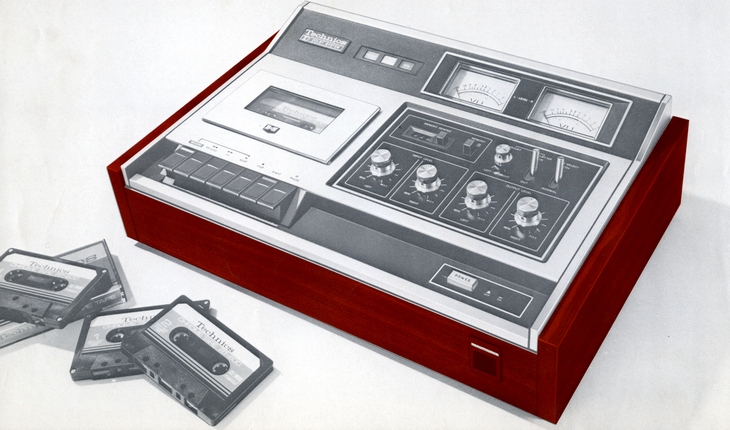

RS-271U
cassette deck
Cassette deck
SPEC_LINES10
MANUAL_FILES0
IMAGE_REELS5
ARCHIVE_COMPLETION92%
TECHNICAL_DATA
Specifications
Overview
- Deck type
- cassette_deck
- Release year
- 1972
Audio performance
- Frequency response
- 30 Hz ~ 13 kHz (Normal)20 Hz to 15 kHz (CrO2)
- S/N ratio
- Dolby off:50dBDolby on:58dB
- Input sensitivity

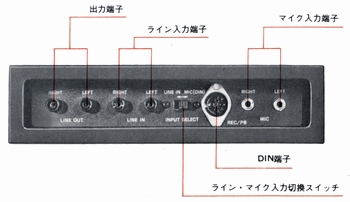

- Mic : 0.3 mv (-70dB) / 600 Ω ~ 20k Ω CompatibleLine : 30 mv (-30dB) / 78k Ω
Chassis and power
- External dimensions
- Width 425x Height 125x Depth 275 mm
- Weight
- Approx. 6 kg
- Power consumption
- Approx. 16W
