AKAI/A&D

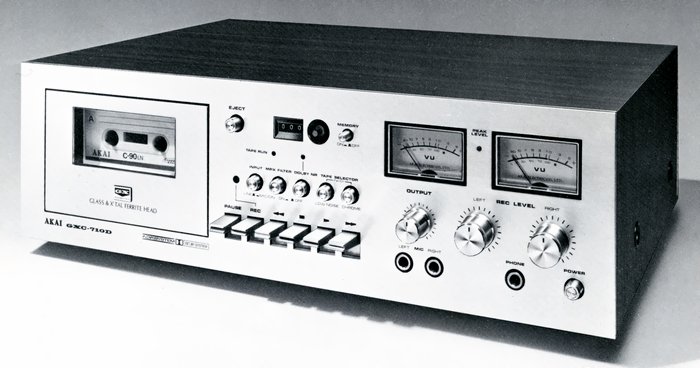

GXC-710D
cassette deck
Stereo cassette deck
SPEC_LINES8
MANUAL_FILES0
IMAGE_REELS4
ARCHIVE_COMPLETION82%
TECHNICAL_DATA
Specifications
Overview
- Deck type
- cassette_deck
- Release year
- 1975
Audio performance
- Frequency response
- 30 Hz ~ 17 kHz ± 3 dB (When Ferrichrome Tape Is Used)30 Hz ~ 16 kHz ± 3 dB (When Chrome Tape Is Used)30 Hz ~ 14 kHz ± 3 dB (When Using Low-Noise Tape)
- S/N ratio
- 54dBWhen Dolby NR is used : 6 db improvement (1 khz), 10 db improvement (5 khz or more)
- THD
- 1.5% (1 kHz, 0 VU)
- Input sensitivity
- Mic : 0.3mV/-69dB/600 Ω ~ 10k Ω Line : 70mV/-21dB/100k Ω Din:3mV/-48dB
Chassis and power
- External dimensions
- Width 440x Height 142x Depth 304 mm
- Weight
- 8.8kg
- Power consumption
- 23W
