COMPONENT_RECORD
AKAI/A&D

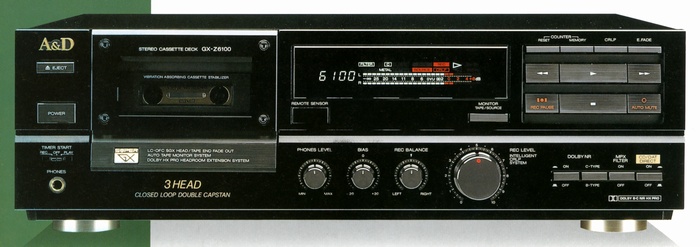

GX-Z6100
cassette deck
Cassette deck
SPEC_LINES8
MANUAL_FILES0
IMAGE_REELS6
ARCHIVE_COMPLETION90%
TECHNICAL_DATA
Specifications
Overview
- Deck type
- cassette_deck
- Release year
- 1989
Audio performance
- Frequency response
- 15 Hz ~ 19 kHz ± 3 dB (Normal Tape)15 Hz ~ 19 kHz ± 3 dB (Chrome Tape)15 Hz ~ 21 kHz ± 3 dB (Metal Tape)
- S/N ratio
- 56dB Dolby B on : Dolby C on : 5 db improvement (1 khz or more) 10 db improvement (5 khz or more) 15 dB improvement (over 500 Hz) 20 db improvement (10 khz or more)
- THD
- 0.6% (Metal Tape, 315 hz, third harmonic, EIAJ)
- Input sensitivity
- Line : 70mV/47k ΩCD/DAT Direct : 240mV/47k Ω
Chassis and power
- External dimensions
- Width 425x Height 137x Depth 353 mm
- Weight
- 5.5kg
- Power consumption
- 14W
