COMPONENT_RECORD

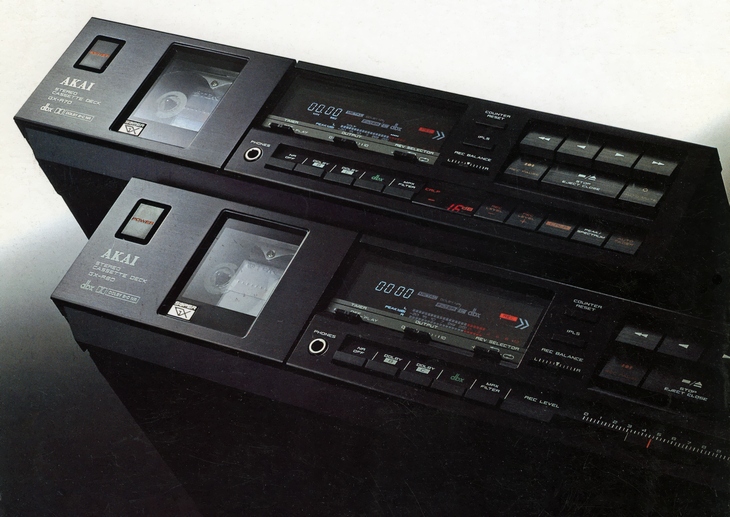

AKAI/A&D
GX-R60
cassette deck
Cassette deck
SPEC_LINES14
MANUAL_FILES0
IMAGE_REELS7
ARCHIVE_COMPLETION96%
TECHNICAL_DATA
Specifications
Overview
- Deck type
- cassette_deck
- Release year
- 1985
Audio performance
- Frequency response
- 20 Hz ~ 17 kHz ± 3 dB (Normal Tape)20 Hz ~ 18 kHz ± 3 dB (CrO2 Tape)20 Hz ~ 19 kHz ± 3 dB (Metal Tape)
- S/N ratio
- 59dB(EIAJ) Dolby B on : 5 dB improvement at 1 kHz, 10 dB improvement at 5 kHz or higher Dolby C on : 15 dB at 500 Hz, 20 dB at 1 kHz to 10 kHz
- THD
- 0.8% (Metal Tape)
- Input sensitivity
- Line : 70mV/47 Ω
Chassis and power
- External dimensions
- Width 440x Height 105x Depth 280 mm (EIAJ)
- Weight
- Approx. 5.0 kg
- Power consumption
- 23W
