COMPONENT_RECORD
AKAI/A&D

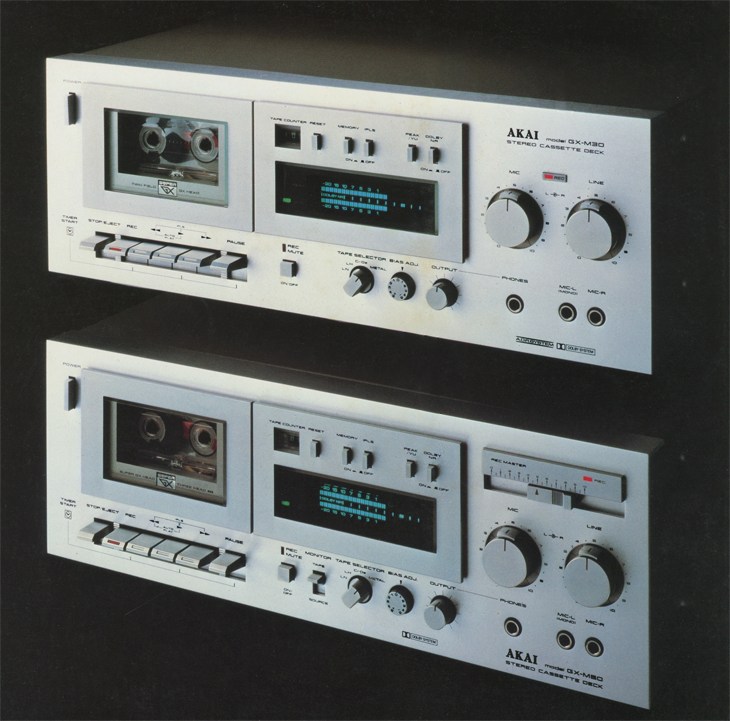

GX-M30
cassette deck
Stereo cassette deck
SPEC_LINES14
MANUAL_FILES0
IMAGE_REELS3
ARCHIVE_COMPLETION96%
TECHNICAL_DATA
Specifications
Overview
- Deck type
- cassette_deck
- Release year
- 1979
Audio performance
- Frequency response
- 30 Hz ~ 15 kHz ± 3 dB (LN Tape)30 Hz ~ 16 kHz ± 3 dB (LH Tape)30 Hz ~ 16.5 kHz ± 3 dB (CrO2/SA Tape)30 Hz ~ 19 kHz ± 3 dB (Metal Tape)
- S/N ratio
- 61 dB (Metal tape, 3% THD level WTD) Dolby NRon : 5 dB improvement at 1 kHz, 10 dB improvement at 5 kHz or higher
- THD
- 0.6% (Metal Tape)
- Input sensitivity
- Line : 70mV/-21dB (input impedance 100k Ω or more) Mic : 0.3mV/-70dB (Compatible Impedance 600 Ω)
Chassis and power
- External dimensions
- Width 440x Height 158x Depth 276 mm
- Weight
- 8.0kg
- Power consumption
- 14W
