AKAI/A&D
GX-F91
cassette deck

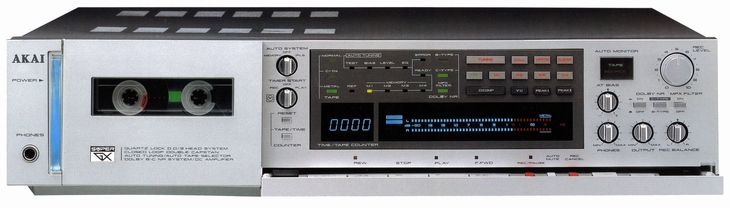

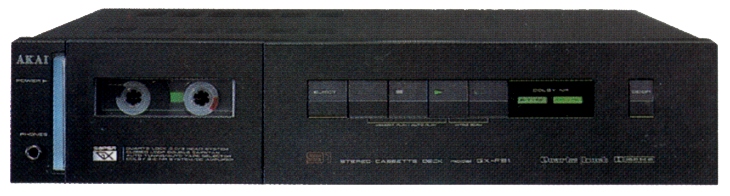

Stereo cassette deck
SPEC_LINES15
MANUAL_FILES0
IMAGE_REELS8
ARCHIVE_COMPLETION96%
TECHNICAL_DATA
Specifications
Overview
- Deck type
- cassette_deck
- Release year
- 1982
Audio performance
- Frequency response
- 20 Hz ~ 18 kHz ± 3 dB (Normal Tape)20 Hz ~ 19 kHz ± 3 dB (CrO2 Tape)20 Hz ~ 21 kHz ± 3 dB (Metal Tape)
- S/N ratio
- 60 dB (3% THD level WTD) 56dB(EIAJ) Dolby B on : 5 dB improvement at 1 kHz, 10 dB improvement at 5 kHz or higher Dolby C on : 15 dB at 500 Hz, 20 dB at 1-10 kHz
- THD
- 0.7% (Metal Tape)
- Input sensitivity
- Line : 70mV/47k Ω
Chassis and power
- External dimensions
- Width 440x Height 100x Depth 363 mm
- Weight
- Approx. 9.8 kg
- Power consumption
- 39W
