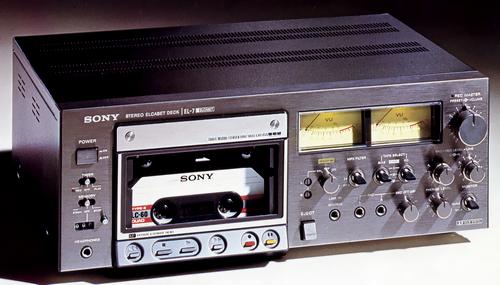

Sony
EL-7/EL-7B
el cassette deck
El Cassette Deck
SPEC_LINES15
MANUAL_FILES0
IMAGE_REELS3
ARCHIVE_COMPLETION96%
TECHNICAL_DATA
Specifications
Overview
- Deck type
- el_cassette_deck
- Release year
- 1976
Audio performance
- Frequency response
- 25 Hz ~ 22 kHz ± 3 dB (Type-II, DUAD Tape)15 Hz ~ 27 kHz (Type-II, DUAD Tape)
- S/N ratio
- 59 dB (Type-I, SLH tape) 62 dB (Type-II, DUAD tape)
- THD
- 0.8% (Type-II tape)
- Input sensitivity
- Microphone : 0.3 mv (-68dB) / LowImpLine in : 0.095 V (-18dB) / 100k ΩLine in (front) : 0.095 v (-18dB) / 10k Ω
Chassis and power
- External dimensions
- Width 430x Height 170x Depth 320 mm
- Weight
- 12.5kg
- Power consumption
- 35W
