COMPONENT_RECORD
DENON-COLUMBIA

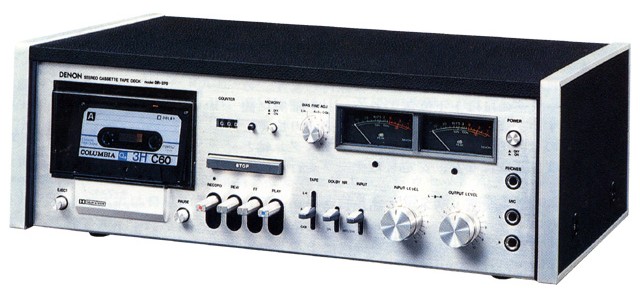

DR-370
cassette deck
4-track, 2-channel stereo cassette deck
SPEC_LINES13
MANUAL_FILES0
IMAGE_REELS10
ARCHIVE_COMPLETION96%
TECHNICAL_DATA
Specifications
Overview
- Deck type
- cassette_deck
- Release year
- 1976
Audio performance

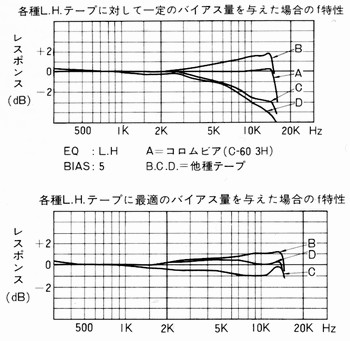

- Frequency response
- 20 Hz ~ 17 kHz (Chrome Tape) 20 Hz ~ 14 kHz (LH Tape)

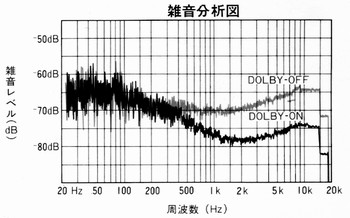

- S/N ratio
- Dolby NR off : 56 dB or more (chrome tape) 55 dB or More (LH Tape) Dolby NRon : 5 dB improvement at 1 kHz, 10 dB improvement at 5 kHz or higher
- Input sensitivity
- Mic : -69dB/50k ΩLine : -20dB/50k Ω* 0 db = 0.775 vrms
Chassis and power
- External dimensions
- Width 467x Height 168x Depth 300 mm
- Weight
- Approx. 8.5 kg
- Power consumption
- 18W
