COMPONENT_RECORD

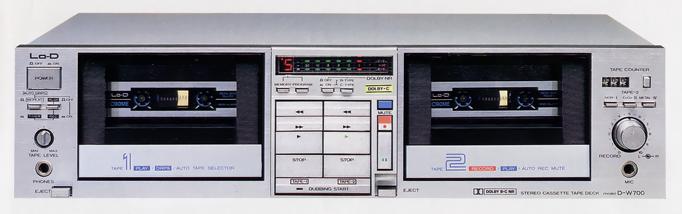

Lo-D/HITACHI
D-W700
double cassette deck
Double cassette deck
SPEC_LINES7
MANUAL_FILES0
IMAGE_REELS5
ARCHIVE_COMPLETION83%
TECHNICAL_DATA
Specifications
Overview
- Deck type
- double_cassette_deck
- Release year
- 1982
Audio performance
- Frequency response
- 20 Hz ~ 18kHz/30Hz ~ 16 kHz ± 3 dB (Metal)20 Hz ~ 18kHz/30Hz ~ 16 kHz ± 3 dB (Chromium)20 Hz ~ 17kHz/30Hz ~ 15 kHz ± 3 dB (Normal)
- S/N ratio
- 3% distortion level, acoustic correction : 74dB(Dolby C NR on) 66dB(Dolby B NR on) 58dB(Dolby NR off)
- Input sensitivity
- Line in : 80mV/50k Ω or moreMic : 0.4mV/300 Ω ~ 5k Ω (Compatible)
Chassis and power
- External dimensions
- Width 435x Height 110x Depth 279 mm
- Weight
- 6kg
- Power consumption
- 24W
