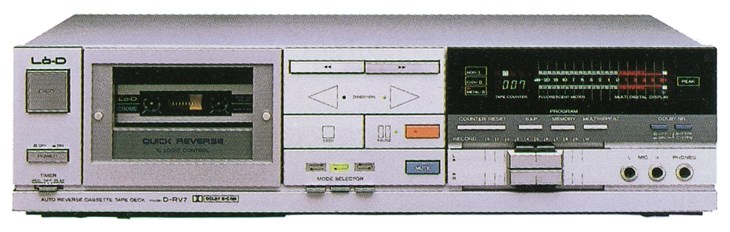

Lo-D/HITACHI
D-RV7
cassette deck
Cassette deck
SPEC_LINES14
MANUAL_FILES1
IMAGE_REELS3
ARCHIVE_COMPLETION96%
TECHNICAL_DATA
Specifications
Overview
- Deck type
- cassette_deck
- Release year
- 1983
Audio performance
- Frequency response
- 20 Hz ~ 19kHz/40Hz ~ 17 kHz ± 3 dB (Metal)20 Hz ~ 18kHz/40Hz ~ 15 kHz ± 3 dB (Chrome)20 Hz ~ 16kHz/40Hz ~ 14 kHz ± 3 dB (Normal)
- S/N ratio
- 74dB(Dolby C NR on) 68dB(Dolby B NR on) 60 dB (Dolby NR off, metal tape) 56dB(Dolby NR off)
- Input sensitivity
- Line in : 88mV/50k ΩMic (Compatible) : 0.54mV/300 Ω ~ 5k Ω
Chassis and power
- External dimensions
- Width 435x Height 110x Depth 272 mm
- Weight
- 4.7kg
- Power consumption
- 22W
