COMPONENT_RECORD

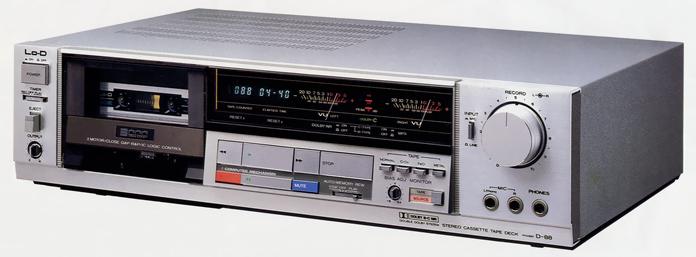

Lo-D/HITACHI
D-88
cassette deck
Cassette deck
SPEC_LINES14
MANUAL_FILES0
IMAGE_REELS3
ARCHIVE_COMPLETION96%
TECHNICAL_DATA
Specifications
Overview
- Deck type
- cassette_deck
- Release year
- 1981
Audio performance
- Frequency response
- 20 Hz ~ 21kHz/30Hz ~ 19 kHz ± 3 dB (Metal) 20 Hz ~ 20kHz/30Hz ~ 18 kHz ± 3 dB (Chromium) 20 Hz ~ 18kHz/30Hz ~ 17 kHz ± 3 dB (Normal, Ferrichrome)
- S/N ratio
- 3% distortion level, acoustic correction : 75dB(Dolby C NR on) 69dB(Dolby B NR on) 61dB(Dolby NR off)
- Input sensitivity
- Line in : 80mV/50k Ω or moreMic : 0.3mV/300 Ω ~ 5k Ω Compatible
Chassis and power
- External dimensions
- Width 435x Height 110x Depth 282 mm
- Weight
- 5.4kg
- Power consumption
- 25W
