COMPONENT_RECORD

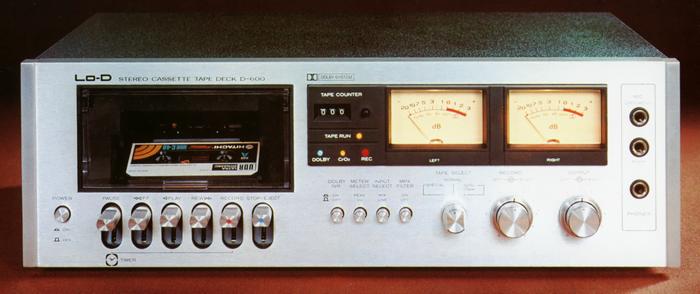

Lo-D/HITACHI
D-600
cassette deck
Cassette deck
SPEC_LINES13
MANUAL_FILES0
IMAGE_REELS6
ARCHIVE_COMPLETION96%
TECHNICAL_DATA
Specifications
Overview
- Deck type
- cassette_deck
- Release year
- 1975
Audio performance
- Frequency response
- Chrome Tape : 20 Hz to 18 kHzSpecial Tape : 20 hz ~ 16 khzNormal Tape : 20 Hz to 14 kHz
- S/N ratio
- Dolby on:60dB Dolby off:53dB
- THD
- 2.0% (1 kHz, 0 dB)
- Input sensitivity
- Mic : 0.25mV/300 Ω ~ 5k Ω (Compatible)Line : 50mV/100k Ω or moreDIN : 0.25mV/2k Ω
Chassis and power
- External dimensions
- Width 435x Height 144x Depth 300 mm
- Weight
- 6.5kg
- Power consumption
- 15W
