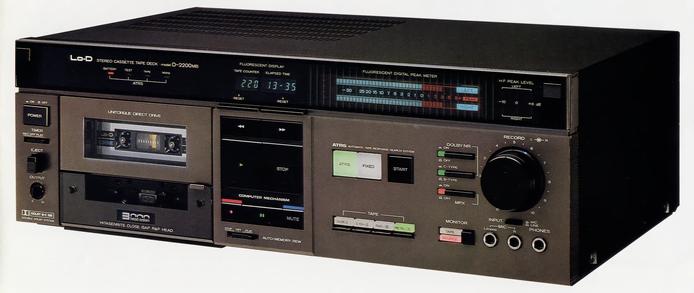

Lo-D/HITACHI
D-2200MB
cassette deck
Cassette deck
SPEC_LINES13
MANUAL_FILES0
IMAGE_REELS4
ARCHIVE_COMPLETION96%
TECHNICAL_DATA
Specifications
Overview
- Deck type
- cassette_deck
- Release year
- 1982
Audio performance
- Frequency response
- 20 Hz ~ 22kHz/25Hz ~ 20 kHz ± 3 dB (Metal)20 Hz ~ 22kHz/25Hz ~ 20 kHz ± 3 dB (Chromium)20 Hz ~ 20kHz/25Hz ~ 20 kHz ± 3 dB (Normal)20 Hz ~ 20kHz/25Hz ~ 20 kHz ± 3 dB (Ferrichrome)
- S/N ratio
- 3% distortion level, acoustic correction : 75dB(Dolby C NR on) 69dB(Dolby B NR on) 61dB(Dolby NR off)
- Input sensitivity
- Line in : 100mV/50k Ω or moreMic : 0.4mV/300 Ω ~ 5k Ω Compatible
Chassis and power
- External dimensions
- Width 435x Height 150x Depth 282 mm
- Weight
- 7.3kg
- Power consumption
- 30W
