COMPONENT_RECORD

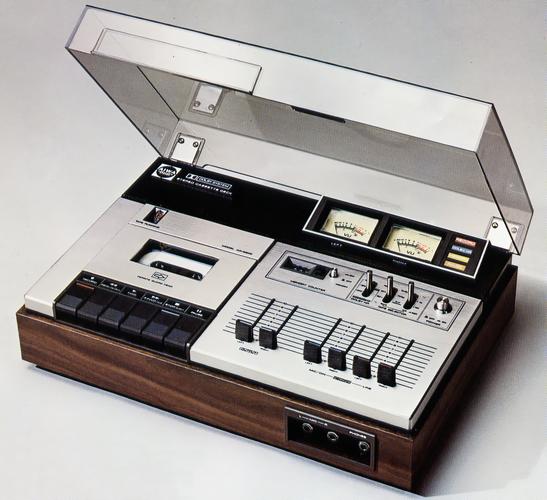

Aiwa/Excelia
AD-5600
cassette deck
Stereo cassette deck
SPEC_LINES12
MANUAL_FILES0
IMAGE_REELS5
ARCHIVE_COMPLETION96%
TECHNICAL_DATA
Specifications
Overview
- Deck type
- cassette_deck
- Release year
- 1974
Audio performance
- Frequency response
- LH Tape : 30 Hz ~ 14 kHz FeCr Tape : 30 Hz to 17 kHz CrO2 Tape : 30 Hz to 17 kHz
- S/N ratio
- 60 dB (Dolby NRon, FeCr, CrO2 Tape)64 dB (Dolby NRon, FeCr tape, peak level, * 1976 data)
- Input sensitivity
- Line : 50mV/50k Ω or moreDin : 0.1mV/k Ω (25k Ω)Mic : 0.25mV/200 Ω ~ 10k Ω Compatible
Chassis and power
- External dimensions
- Width 419x Height 152x Depth 295 mm (Including Dust Cover)
- Weight
- 6.2 kg (Including Dust Cover)
- Power consumption
- 15W
