COMPONENT_RECORD

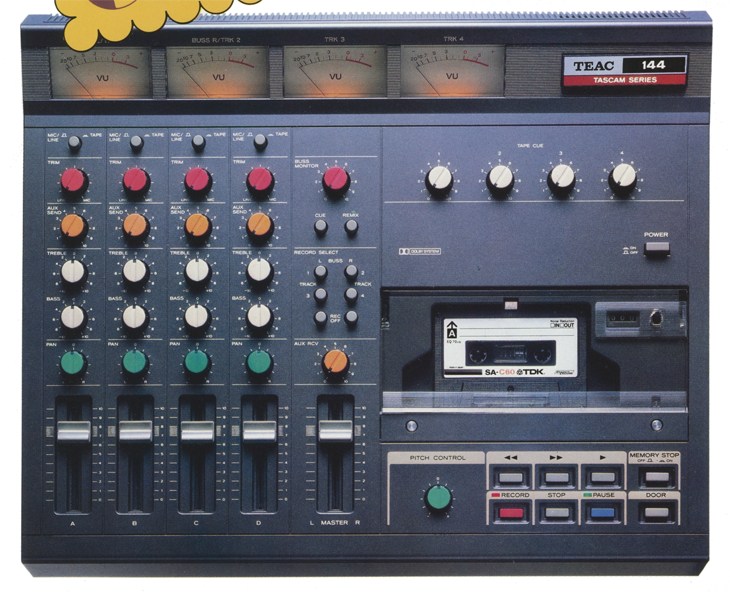

Teac/Esoteric/Tascam
144
combo cassette deck
Cassette deck / audio mixer
SPEC_LINES15
MANUAL_FILES0
IMAGE_REELS5
ARCHIVE_COMPLETION96%
TECHNICAL_DATA
Specifications
Overview
- Deck type
- combo_cassette_deck
- Release year
- 1979
Audio performance
- Frequency response
- Mixer Section : 20 Hz to 20 kHzRecorder section : 20 Hz to 18 kHz
- S/N ratio
- Mixer section : 68 dB (Mic in-line out, acoustic compensation)Recorder section : 63 dB (sound correction, Dolby NR in)
- Input sensitivity
- Mic:-60dB(1mV) Line:-10dB(0.3V)
- Impedance
- 65k Ω
Chassis and power
- External dimensions
- Width 460x Height 120x Depth 370 mm
- Weight
- 9kg
- Power consumption
- 28 W
